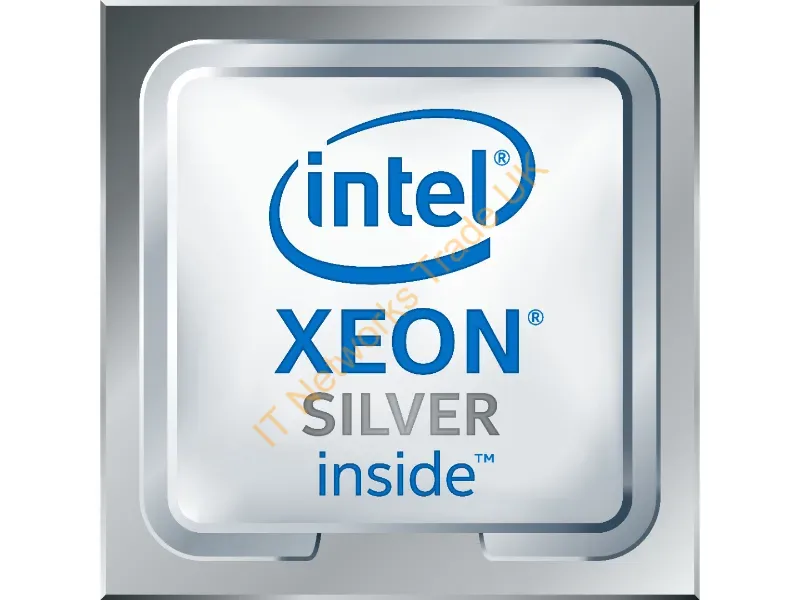

CD8069503956900 - Intel Xeon 4209T Processor 2.2 Ghz 11 Mb Tray

CD8069503956900 - Intel Xeon 4209T Processor 2.2 Ghz 11 Mb Tray

Category: Processors
Availability: In Stock — 11 remaining
Part Number: CD8069503956900
Manufacturer: Intel
Warranty: 90 Days
EAN: 5054444265032
Payment Methods: Visa American Express Discover Mastercard PayPal
Excl. VAT MSRP:
Inc. VAT MSRP:

-You Save:



REQUEST A QUOTE

Request a quote below or call 02079938331 for further assistance with this part number

Get exclusive discounts on bulk orders


SECURITY CHECK / CAPTCHA
CAPTCHA 4 + 3 = ?

Intel Xeon Silver 4209T Tray Processor: Decoding a Low-Power 8-Core Cascade Lake Server CPU

A server CPU's model name says a lot before you open the datasheet. The Intel Xeon Silver 4209T (ordering code CD8069503956900) is a good example. This guide starts by reading the name, then moves through the specifications that make the chip a dependable, energy-efficient server processor for compact and always-on systems.

Reading the Name: Silver, 4209 and the "T"

"Silver" places the chip in the mid tier of the 2nd Generation Intel Xeon Scalable family, code name Cascade Lake, launched in Q2 2019. In Intel's numbering, the "4" marks the Silver tier and the "2" marks the second generation. The "T" suffix marks a model rated for a higher case temperature: Intel lists a TCASE of 91 °C. That makes it suited to edge sites, telecom cabinets and enclosures where cooling is limited. "Tray" means OEM packaging, with no retail box and no cooler.

8 Cores, 16 Threads at 2.2 GHz

The chip has 8 cores and 16 threads, using Intel Hyper-Threading. The base clock is 2.20 GHz, and Intel Turbo Boost 2.0 raises it to a 3.20 GHz max turbo frequency. That is enough for file and print servers, domain controllers, network appliances, light virtualization and branch-office infrastructure.

11 MB Shared Cache

An 11 MB last-level cache is shared across all eight cores. It keeps frequently used data on the chip, which cuts memory latency for databases, web services and storage tasks.

70W TDP: Efficiency First

The processor's TDP is just 70 W, which keeps power draw and heat output low. That suits high-density rack servers, multi-node chassis and around-the-clock deployments where electricity and cooling costs matter. Intel Speed Shift and Enhanced SpeedStep adjust frequency to the load, which saves more power at idle.

Six-Channel DDR4-2400 Memory

The integrated memory controller supports six channels of DDR4-2400 with ECC, and up to 1 TB of memory depending on module type. Six channels give useful bandwidth to virtual machines and in-memory caches. ECC protects data integrity, which matters for business-critical servers.

48 PCIe 3.0 Lanes for Expansion

There are 48 PCI Express 3.0 lanes, enough for RAID controllers, 10/25GbE network cards, NVMe drives and accelerators. Intel VMD (Volume Management Device) helps manage NVMe SSDs, including hot-swap support in compatible servers.

Dual-Socket Scalability on LGA 3647

The 4209T fits the FCLGA3647 (Socket P) socket. Two UPI links allow dual-socket (2S) configurations, so one server can run 16 cores and 32 threads across two CPUs.

AVX-512 and Intel Deep Learning Boost

Cascade Lake brings Intel AVX-512 (one FMA unit) and Intel Deep Learning Boost, which speed up vector maths and AI inference. AES New Instructions and TSX-NI improve encryption and transactional performance.

Security and Virtualization

Hardware support covers Intel VT-x, VT-d and EPT for virtualization, plus Intel Trusted Execution Technology, Execute Disable Bit, Mode-based Execute Control and Resource Director Technology. The chip is also vPro eligible. It works well as a host for VMware ESXi, Hyper-V and KVM.

Ideal Uses for the Xeon Silver 4209T:

The Intel Xeon Silver 4209T 8-core tray CPU fits:

  • Edge computing nodes.
  • Telecom and network appliances.
  • SMB and branch-office servers.
  • Multi-node chassis, where low power and high temperature tolerance count.

Check that your LGA 3647 motherboard or server supports 2nd Gen Xeon Scalable processors before installing.

Full Technical Specifications · Server Processors / CPUs
Intel Xeon Silver 4209T 8-Core 2.2 GHz 11 MB Tray Processor
MPN: CD8069503956900  |  Brand: Intel
Product Overview
Brand Intel
Product Line 2nd Generation Intel Xeon Scalable (Xeon Silver)
Model Xeon Silver 4209T
Code Name Cascade Lake
Component Type Server / Workstation
Packaging Tray (OEM) – no box, no cooler
Launch Date Q2'19
CPU Cores & Clocks
CPU Cores 8
Threads 16 (Intel Hyper-Threading)
Base Frequency 2.20 GHz
Max Turbo Frequency 3.20 GHz
Turbo Technology Intel Turbo Boost 2.0
Turbo Boost Max 3.0 Not supported
Cache
Cache 11 MB (shared last-level cache)
Interconnect & Scalability
UPI Links 2
Scalability 2S
Memory Support
Memory Type DDR4-2400
Memory Channels 6 (Hexa-channel)
Max Memory 1 TB (dependent on memory type)
ECC Support Yes
Intel Optane Memory Supported No
Expansion
PCI Express Revision 3.0
Max PCI Express Lanes 48
Intel Volume Management Device (VMD) Yes
Power & Thermal
TDP 70 W
TCASE 91 °C
Advanced Technologies
Intel Deep Learning Boost Yes
Instruction Set Extensions Intel AVX-512 (1 AVX-512 FMA unit)
Intel AES New Instructions Yes
Intel TSX-NI Yes
Intel 64 Yes
Intel Speed Shift Technology Yes
Enhanced Intel SpeedStep Yes
Intel Resource Director Technology (RDT) Yes
Intel Speed Select Technology Not supported
Intel Run Sure Technology Not supported
Security & Virtualization
Intel VT-x / VT-d / VT-x with EPT Yes / Yes / Yes
Intel Trusted Execution Technology Yes
Execute Disable Bit Yes
Mode-based Execute Control (MBEC) Yes
Intel vPro Eligibility Yes
Physical
Socket FCLGA3647 (LGA 3647 / Socket P)
Lithography 14 nm
General Reference
Manufacturer Ordering Code CD8069503956900
Ordering Information
Manufacturer Part Number CD8069503956900
Original Listing Title CD8069503956900 - Intel Xeon 4209T Processor 2.2 Ghz 11 Mb Tray
