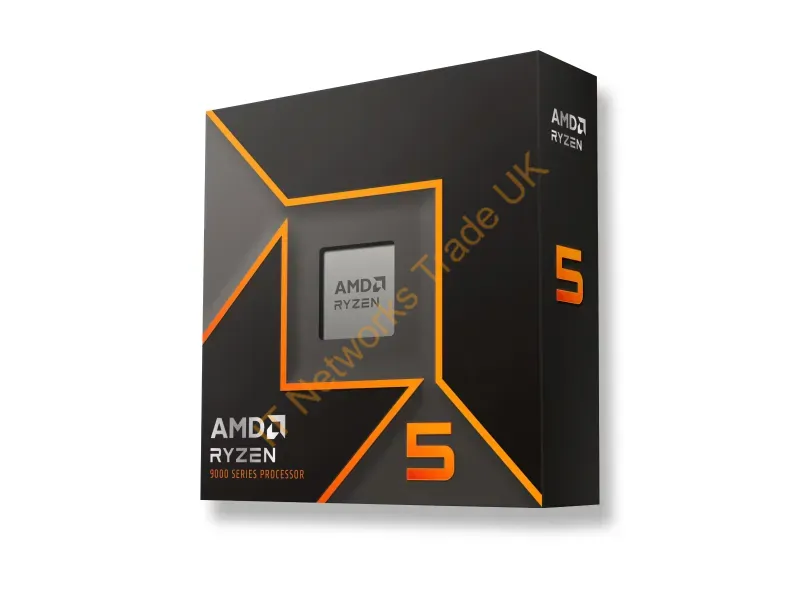

100-100001405WOF - AMD Ryzen 5 9600X Processor 3.9 Ghz 38 Mb L2 & L3 Box

100-100001405WOF - AMD Ryzen 5 9600X Processor 3.9 Ghz 38 Mb L2 & L3 Box

Category: Processors
Availability: In Stock — 3 remaining
Part Number: 100-100001405WOF
Manufacturer: AMD
Warranty: 90 Days
EAN: 730143315609
Replacement SKU: BX80768250K
Payment Methods: Visa American Express Discover Mastercard PayPal
Excl. VAT MSRP:
Inc. VAT MSRP:

-You Save:



REQUEST A QUOTE

Request a quote below or call 02079938331 for further assistance with this part number

Get exclusive discounts on bulk orders


SECURITY CHECK / CAPTCHA
CAPTCHA 7 + 1 = ?

AMD Ryzen 5 9600X Desktop Processor: 6-Core Zen 5 CPU for AM5 Gaming PCs

The AMD Ryzen 5 9600X is a six-core desktop processor in AMD's Ryzen 9000 Series, released on 8 August 2024. The boxed retail version has part number 100-100001405WOF, and the tray version is 100-000001405. AMD places it in its Enthusiast Desktop segment. It is one of the most affordable ways onto the Zen 5 architecture and the AM5 platform.

Background: Where the 9600X Sits in the Ryzen 9000 Series

The chip was developed under the codename Granite Ridge and is the entry point to AMD's Ryzen 5 9000 line. It is aimed at gamers and everyday users who want current-generation architecture without paying for higher core counts. That makes it a common pick for mid-range gaming PC builds and upgrades from older AM4 systems.

Design: Zen 5 Cores on TSMC 4nm

The processor has two dies in one package:

  • A compute die with 6 cores and 12 threads, built on TSMC 4nm FinFET.
  • An I/O die built on TSMC 6nm.

The cores run from a 3.9 GHz base clock and reach a max boost clock of up to 5.4 GHz through Precision Boost 2. The cache is made up of 32 MB of L3, 6 MB of L2 and 480 KB of L1. The 6 MB L2 and 32 MB L3 together give the 38 MB L2 + L3 in the product title.

Efficiency: 65W TDP with Overclocking Headroom

The 9600X has a default TDP of just 65W, which is low for a six-core enthusiast chip. That makes it easy to cool and suits compact cases. It is also fully unlocked for overclocking, with tuning through Precision Boost Overdrive, Curve Optimizer voltage offsets and the AMD Ryzen Master utility. The maximum operating temperature (Tjmax) is 95 °C.

Memory: Dual-Channel DDR5 with AMD EXPO

Like every AM5 chip, the 9600X supports only DDR5 memory, in a dual-channel UDIMM setup. AMD rates it at DDR5-5600 with two DIMMs and DDR5-3600 with four, and lists a maximum capacity of 256 GB. AMD EXPO profiles allow one-click memory overclocking. ECC is supported on motherboards that allow it.

Connectivity: PCIe 5.0 and Native USB

The processor provides PCIe 5.0 with 28 lanes in total, 24 of them usable. That is enough for a modern graphics card and a fast Gen 5 NVMe SSD, with NVMe RAID 0, 1, 5 and 10 supported. It also offers four native USB 3.2 Gen 2 ports and one USB 2.0 port. The chipset adds more lanes depending on the board.

Integrated Graphics: AMD Radeon on Board

Built-in AMD Radeon Graphics, with 2 graphics cores at 2200 MHz, provides display output without a graphics card. USB Type-C DisplayPort Alternate Mode is also supported. This helps with first boot, troubleshooting and office machines.

Platform: AM5 Socket and Supported Chipsets

The 9600X uses the AM5 socket. It works with the newer X870E, X870, B850 and B840 chipsets, as well as the earlier X670E, X670, B650E, B650 and A620 boards. Supported instruction sets include AVX-512 and AVX2. Supported operating systems are Windows 11, Windows 10, RHEL and Ubuntu.

Use: Who the Ryzen 5 9600X Is For

The AMD Ryzen 5 9600X fits:

  • Value-focused 1080p and 1440p gaming builds.
  • Small form factor and quiet PCs.
  • First-time AM5 builders who want room to upgrade later.

The boxed WOF version comes without a cooler, and AMD recommends a premium air cooler. Pair it with a B650 or B850 motherboard and a DDR5-5600 kit for a balanced AM5 system.

Full Technical Specifications · Processors / CPUs
AMD Ryzen 5 9600X 3.9 GHz 38 MB L2 & L3 Box Processor (No Cooler)
MPN: 100-100001405WOF  |  Brand: AMD
Product Overview
Brand AMD
Family / Series Ryzen / Ryzen 9000 Series
Model Ryzen 5 9600X
Form Factor Desktop, Boxed Processor
Market Segment Enthusiast Desktop
Architecture Zen 5
Former Codename Granite Ridge AM5
Release Date 8 August 2024
CPU Cores & Clocks
CPU Cores 6
Threads 12 (SMT)
Base Clock 3.9 GHz
Max Boost Clock Up to 5.4 GHz
Boost Technology Precision Boost 2
Unlocked for Overclocking Yes
Tuning Features Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD Ryzen Master
Cache
L1 Cache 480 KB
L2 Cache 6 MB
L3 Cache 32 MB
Total L2 + L3 38 MB (calculated)
Platform & Socket
CPU Socket AM5
Process Technology CPU cores: TSMC 4nm FinFET; I/O die: TSMC 6nm FinFET
Dies per Package 2
Supported Chipsets X870E, X870, B850, B840, X670E, X670, B650E, B650, A620
Memory Support
Memory Type DDR5 (UDIMM)
Memory Channels 2
Max Memory 256 GB (AMD)
Max Speed – 2x1R / 2x2R DDR5-5600
Max Speed – 4x1R / 4x2R DDR5-3600
ECC Support Yes (requires motherboard support)
Memory Overclocking AMD EXPO
Connectivity
PCI Express Version PCIe 5.0
Native PCIe Lanes (Total / Usable) 28 / 24
Additional Usable Lanes from Chipset X870E: 8x Gen4; X870: 4x Gen4; X670E / X670: 12x Gen4; B650E / B650: 8x Gen4
NVMe Support Boot, RAID 0, RAID 1, RAID 5, RAID 10
Native USB 3.2 Gen 2 (10 Gbps) 4
Native USB 2.0 (480 Mbps) 1
Integrated Graphics
Graphics Model AMD Radeon Graphics
Graphics Cores 2
Graphics Frequency 2200 MHz
USB Type-C DisplayPort Alt Mode Yes
Power & Thermal
Default TDP 65 W
Max Operating Temperature (Tjmax) 95 °C
Thermal Solution (PIB) Not included
Recommended Cooler Premium air cooler
Instructions & Software
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX-512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3
Supported OS Windows 11 / 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit
General Reference
OPN (Boxed / PIB) 100-100001405WOF
OPN (Tray) 100-000001405
Box Contents Boxed processor; no fan or heatsink
